Mini AC Synchronous Motor
-
Instant start, stop & Reversible, Low speed 2.5 to 60 RPM@50Hz.,High Torque 3.0 kg cm Insulation class - B
-
Single Phase Supply: Motor can be directly connected to 240v,50 Hz, One phase power along with factory supplied R-C network in series with one of the stator winding
-
Motor Daimention 50*40, Output shaft 6/7/8mm.
-
flange mounting,
-
Weight Aprox, 500 G.m.
|
 |

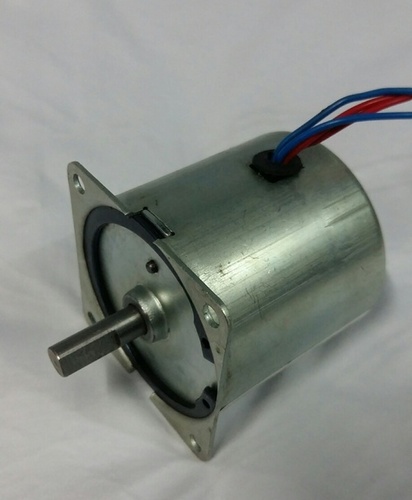

MINI AC SYNCHRONOUS IN LINE GEAR MOTOR
- AC - 230 V
- SINGLE PHASE 20 W
- RPM 10/20/60
- DIMENSION - 60*60*60MM.
- OUT PUT SHAFT 8*25MM.
- Out Put torque 10 kg cm.
- IN line Center Shaft.
|
 |

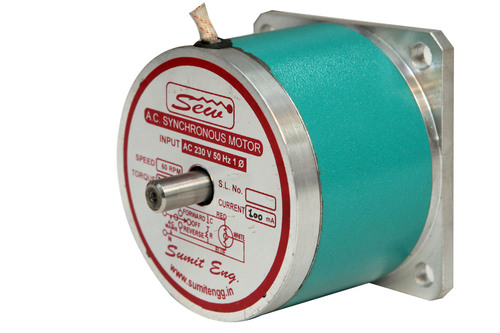

AC Synchronous Motors 7Kg. Cm. Torque
- Instant start, stop & Reversible, Low speed 60 RPM@50Hz. High Torque 7 Kg.cm torque, Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power along with factory supplied R-C network in series with one of the stator winding
- Motor Daimention 86*86*68mm.
- Output saft 8/10*32mm.
- flange mounting, 7mm's 4 hole on 100mm pcd
- 2.5 RPM available in worm will gear box 1:24,
- Extra charge 2000.00 for gear box[1:24]
- Delivery Time 10 Day After PO,
- Weight Aprox, 1.500 kg.
|
 |

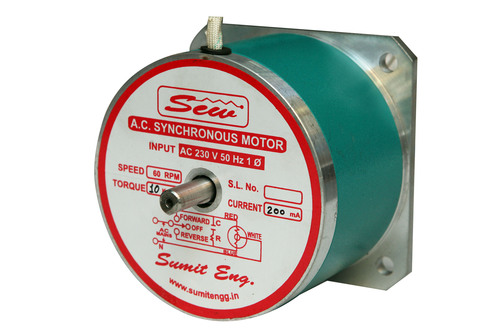

AC Sychoronous Motors 10Kg. Cm. Torque
- Instant start, stop & Reversible, Low speed 60 RPM@50Hz.,High Torque 10Kg.cm torque Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power along with factory supplied R-C network in series with one of the stator winding.
- Motor Daimention 108*108*80mm, output saft 10*35mm,
- mounting flange 7mm's 4 hole on 124mm pcd,
- Gear box charge 2000.00 [1:24] [2.5 rpm]
- Weight Aprox, 3.000 kg.
- Delivery time 10 Day After PO.
|
 |

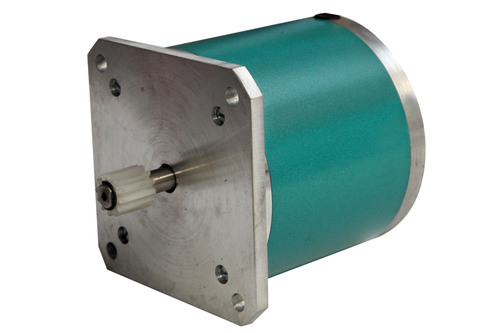

AC Synchronous Motors 20Kg. Cm. Torque
- Instant start, stop & Reversible, Low speed 60 RPM@50Hz.,High Torque 20 Kg.cm Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power alongwith factory supplied R-C network in series with one of the stator winding.
- Motor daimention 108*108*105mm ,output saft 10*32mm,
- Flange mounting, 7mm's 4 hole on 124 pcd.
- Weight Aprox, 4.000 kg.
- Delivery Time 10 Day After PO.
|
 |

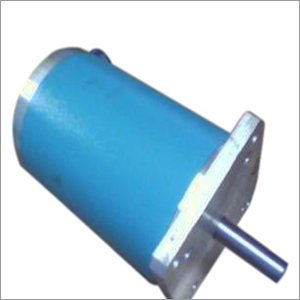

AC Synchronous Motors 40/60 Kg. Cm. Torque
- Instant start, stop & Reversible, Low speed 60 RPM@50Hz.,High Torque 40Kg.cm Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 Hz, One phase power along with factory supplied R-C network in series with one of the stator winding
- Motor Daimention 108*108*160mm , output shaft 15*50mm
- flange mounting, 8mm's 4 hole on 124 pcd,
- Weight Approx, 8.000 kg
|
 |
AC SYNCHRONOUS MOTOR DIMENTION
A |
MOTOR O.D |
B |
MOTOR LENGTH |
C |
MOUNTING HOLE PCD |
D |
SHAFT O.D |
E |
SHAFT LENGTH |
F |
BACKSIDE SHAFT LENGTH |
G |
MOUNTING FLENCH THICKNESS |
H |
MOUNTING HOLE O.D. |
I |
MOUNTING FLENCH O.D. |
J |
HOLE CENTRE |
AC SYNCRONUS MOTOR DIMENTION CHART:
TORQUE/KG |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
3/7 |
86 |
66 |
100 |
10 |
32 |
19 |
5 |
8 |
115 |
70 |
10/15 |
108 |
80 |
124 |
10 |
34 |
22 |
7 |
8 |
142 |
87 |
20 |
108 |
106 |
124 |
10 |
32 |
20 |
7 |
8 |
142 |
89 |
30 |
110 |
122 |
124 |
15 |
35 |
26 |
10 |
8 |
142 |
89 |
40/60 |
110 |
158 |
124 |
15 |
35 |
24 |
10 |
8 |
142 |
89 |
|
 |

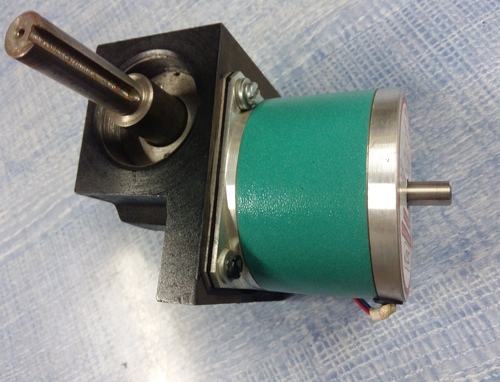

Ac Synchronous 7 Kg Gear Motor
- Instant start, stop & Reversible, Low speed 2.5 RPM@50Hz.,High Torque 7 Kg.cm torque, Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power along with factory supplied R-C network in series with one of the stator winding
- Motor Diamention 100*100*150mm, Output saft 12/14/15*50mm.
- 2.5 RPM available in worm will gear box 1:24,
- Extra charge 2000.00 for gear box[1:24]
- Delivery Time 10 Day After PO,
- Weight Aprox, 4.000 kg.
|
 |

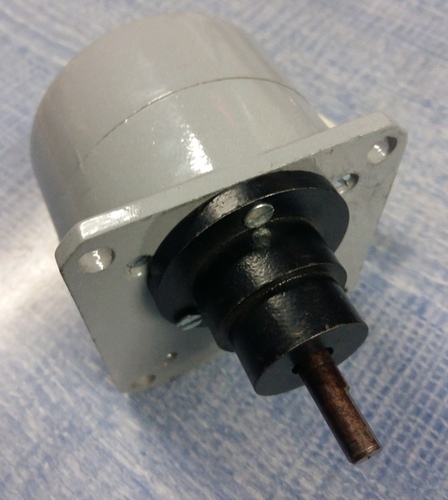

Ac Synchronous In Line Gear Motor
- Instant start, stop & Reversible, Low speed 20 RPM@50Hz.,High Torque 7 Kg.cm torque, Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power along with factory supplied R-C network in series with one of the stator winding
- Motor Dimension 86*86*100.
- Output saft 8/10mm off center.
- flange mounting, 7mm's 4 hole on 100mm pcd
- Delivery Time 10 Day After PO,
- Weight Aprox, 2.000 kg.
|
|
Ac Synchronous Gear Motor
- Instant start, stop & Reversible, Low speed 10 RPM@50Hz.,High Torque 7 Kg.cm torque, Insulation class - B
- Starting, Running & Stalling Currents are same
- Single Phase Supply: Motor can be directly connected to 230v,50 H, One phase power along with factory supplied R-C network in series with one of the stator winding
- Motor Dimension 86*86*100mm.
- Output saft 8/10mm center shaft.
- flange mounting, 7mm's 4 hole on 100mm pcd
- Extra charge 1000.00 for in line gear box 1:6 , 1:36
- Delivery Time 10 Day After PO,
- Weight Aprox, 3.000 kg.
|
 |

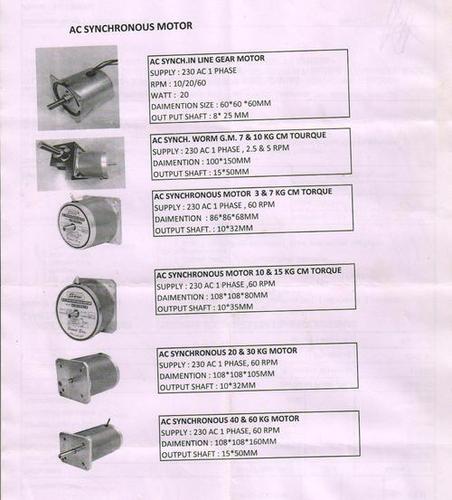

Ac Synchronous Motor
- Dimension Of Ac Synchronous Motor
|
 |

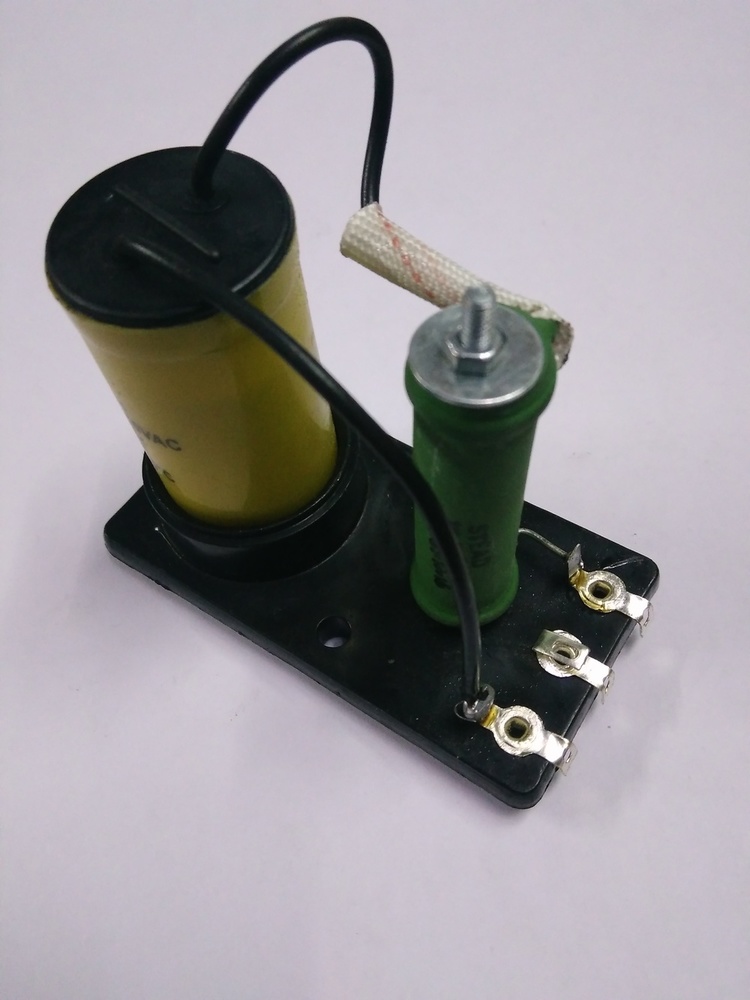

AC SYNCHRONOUS 3 & 7 KG RC NETWORK
- AC SYNCHRONOUS 3 & 7 KG RC NETWORK
|
|
