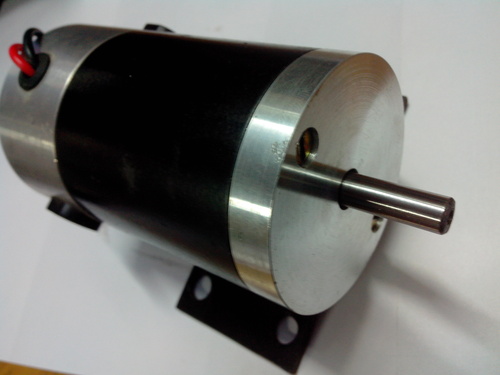

PMDC Motor 50 W
- Supply: DC 12 volt to 230 volt DC.
- capacity: 50 watt
- RPM : As per customer requirement.1000 to 6000
- Mounting, foot, flange ,face.
- Motor Daimention 60*60*100mm
- Motor Shaft 8/10*25mm.
- Delivery time 10 day After PO,
- Available Planetary Gear Box 1:6 & 1 : 36
- Weight : 2.000kg.
|
 |
PMDC Motor 100 W
- Supply: DC 12 volt to 230 volt DC.
- Capacity: 100 watt
- RPM : As per customer requirement.1000 to 6000
- Gear Box: In line Planetary 1:6 & 1:36
- Worm Gear Box : 1:24
- Mounting, foot, flage, face,
- Motor Daimention 80*120mm.
- Delivery Time 15 Day After PO,
- Weight 4.000kg
|
 |
PMDC Motor 200w.
- Supply: DC 12 volt to 230 volt DC.
- capacity: 200 watt
- RPM : As per customer requirement.
- Gear Box Available of warm will type 1:7.50/15/24/30/40/60
- Mounting, foot, flange & face,
- Motor Daimention 80*200mm
- Delivery time 15 day After PO,
- Weight 5.000kg
|
 |

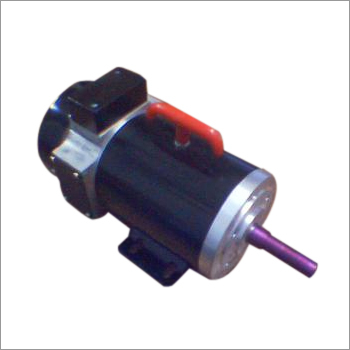

PMDC Motor 400 W
- Supply: DC 12 volt to 230 volt DC.
- Capacity: 400 watt
- RPM : As per customer requirement. 1000 to 6000
- Mounting, foot, flange & face.
- Motor Daimention 130*280mm
- flange mounting, 10mm's 4 hole on 130 pcd.
- Available of Gear box 1:7.5/15/30/40/60.
- output Shaft 14/15/19*50mm.
- Delivery Time 15 Day After PO,
- Weight 8.000kg
|
 |
PMDC MOTOR DIMENTION
PMDC MOTOR DIMENTION CHART:
WATT |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
5 |
38 |
55 |
|
6 |
22 |
|
|
|
|
|
10 |
25 |
35 |
17 |
2 |
10 |
|
|
3 |
|
|
25 |
36 |
57 |
25 |
3 |
13 |
|
|
3 |
|
|
50 |
45 |
77 |
30 |
5 |
25 |
|
|
4 |
|
|
75 |
60 |
115 |
48 |
8 |
34 |
|
|
5 |
|
35 |
100 |
75 |
145 |
|
10 |
32 |
|
|
|
|
|
150 |
80 |
150 |
106 |
15 |
50 |
|
9 |
6 |
125 |
75 |
200 |
85 |
165 |
106 |
15 |
50 |
|
10 |
8 |
125 |
75 |
300 |
90 |
185 |
106 |
15 |
50 |
|
10 |
8 |
125 |
75 |
|
 |

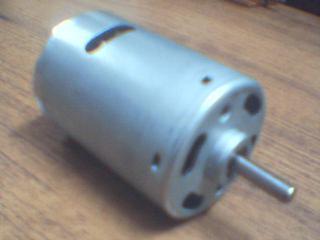

PMDC Motor 25W
- 6 To 24 V Dc,
- 3000 To 10000 Rpm,
- Motor Dimension 42*70Mm,
- Motor Shaft 5*17 Mm
- Face Mounting
|
 |

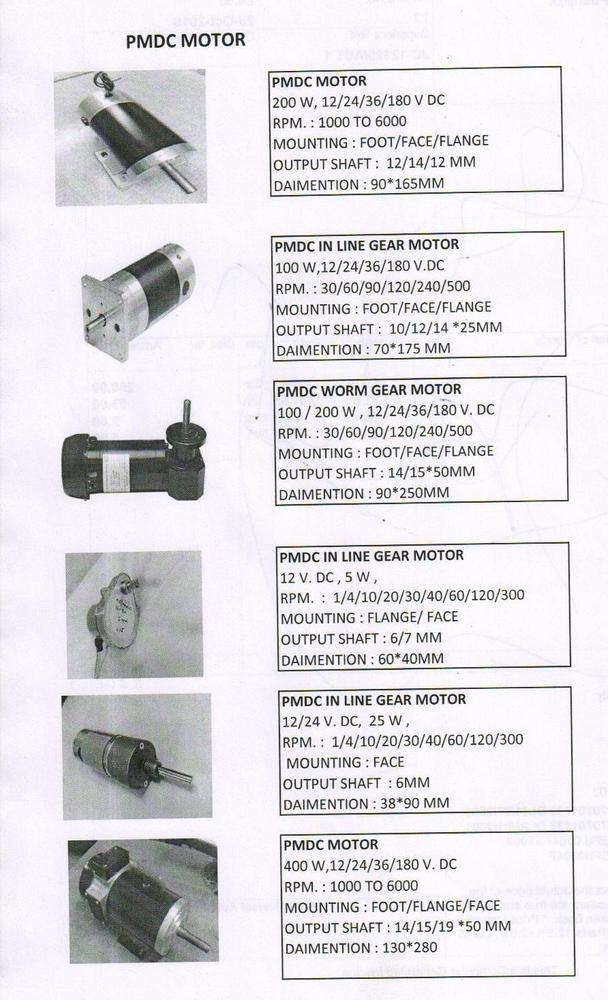

PMDC MOTOR DAIMENTION
- PMDC MOTOR & GEAR MOTOR DAIMENTION
|
|
