PMDC Gear Motors

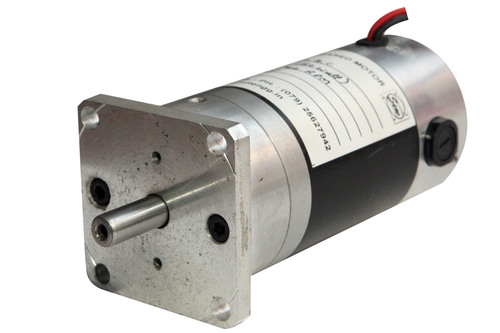

PMDC,50W IN LINNE PLANETARY GEAR MOTOR.

• Supply: DC 12 volt to 230 volt DC.
• capacity: 50 watt
• RPM : As per customer requirement.1500/3000
• Gear Box: Spur Gear Planatory type
• Mounting, foot, flange ,face,
• Motor OD 60mm, lanth130mm,output saft 8/10*25 mm,
• Delivery time 10 day After PO,
• Gear box 1:6 / 1:36 Available.
• Weight ,2.000kg.

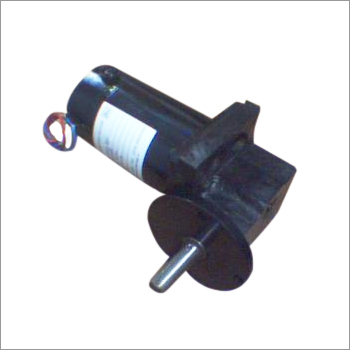

PMDC Worm Gear Motor 100 W

• Supply: DC 12 volt to 230 volt DC.
• Capacity: 100 watt
• RPM : As per customer requirement. 60/120/240
• Gear Box: Spur Gear & warm will type {1:24}
• Mounting, foot, flage, face,
• Motor OD 80mm, lenth 150mm.
• Delivery Time 15 Day After PO,
• Weight 4.000kg

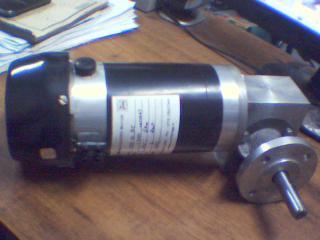

PMDC Worm Gear Motor 200 W

• Supply: DC 12 volt to 230 volt DC.
• Capacity: 200 watt
• RPM : As per customer requirement.
• Mounting, foot, flange & face.
• Motor Daimention 100*100*260mm.
• flange mounting, 10mm's 4 hole on105mm pcd.
• Delivery Time 15 Day After PO,
• Weight 5.000kg

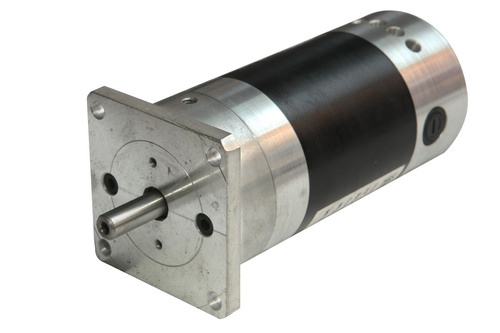

PMDC Inline Planetary Gear Motor

• Supply: DC 12 volt to 230 volt DC.
• capacity: 100 watt
• RPM : As per customer requirement.
• Gear Box: Spur Gear Planatory type
• Mounting, foot, flange ,face,
• Motor OD 70 mm, lanth 160 mm,output saft 10*25 mm,
• Delivery time 10 day After PO,
• Gear box 1:6 / 1:36 Available.
• Weight ,3.000kg.

Pmdc In Line Gear Motor

• Supply: DC 12 volt
• Capacity: 5 watt
• RPM : As per customer requirement.[4/12/30/60/120/300/800]
• Gear Box: Spur Gear Center shaft.
• Mounting : face,
• Motor dimension 38*50mm , shaft 6*22mm
